Issue
Product: Server Automation
Unable to access SA Core primary from SA Client

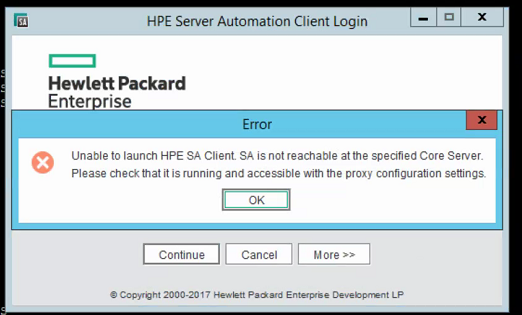

Error when access SA Core
Analysis
It is happening before the NGUI even tries to talk to the twist.
At this stage in the startup, it is attempting to talk to the OCC, via the httpsProxy port 80 redirector.
Refer the architecture of SA here
SA Architecture diagram
Httpsproxy
Below is the corresponding log record of the failed redirection from the httpsProxy logs:
1
2
3
4
$ cd /var/log/opsware/httpsProxy
$ grep /jnlp redirector_request_log | grep ' 74' | grep 49-31
[03/Mar/2021:09:19:31 +0000] 172.23.224.69 "GET /jnlp?hostname=172.23.224.32&launcherversion=2.1.13&-Dngui.log.file=C%3A%5CUsers%5Cdxc_shivarajup%5Cappdata%5CRoaming%5CHPE+SA%5C%5Clogs%5Cngui_03-03-2021_14-49-31.log&-Dngui.home=C%3A%5CUsers%5Cdxc_shivarajup%5Cappdata%5CRoaming%5CHPE+SA%5C&-Dngui.debug=true&-Dcom.opsware.bootstrap.host=172.23.224.32 HTTP/1.1" 74
The return size of “74” indicates this is a failure interaction. The return size should be larger than this. Below is the most recent successful NGUI download attempt from the httpsProxy logs:
1
2
3
$ grep /jnlp redirector_request_log | grep -v ' 74' | tail -1
[26/Jul/2020:09:02:18 +0530] 172.23.251.24 "GET /jnlp?hostname=172.23.224.32&launcherversion=2.1.13&-Dngui.log.file=C%3A%5CUsers%5Cdxc_nishanta%5Cappdata%5CRoaming%5CHPE+SA%5C%5Clogs%5Cngui_26-07-2020_09-02-18.log&-Dngui.home=C%3A%5CUsers%5Cdxc_nishanta%5Cappdata%5CRoaming%5CHPE+SA%5C&-Dcom.opsware.bootstrap.host=172.23.224.32 HTTP/1.1" 3161
Below are the redirector rules from the httpsProxy configuration file “/etc/opt/opsware/httpsProxy/httpd.conf”:
1
2
3
4
5
6
Secure redirector in apache
<VirtualHost *:80>
. . .
RewriteRule ˆ/jnlp(.*) http://localhost:9080/com.opsware.file/jnlp$1 [P,L]
. . .
</VirtualHost>
I’ve highlighted the RewriteRule that is in play for this JNLP NGUI download interaction.
You can see that it redirects the request to port 9080, and rewrites the URL to make use of the “com.opsware.file” servlet.
Port 9080 belongs to the OCC as you can see below:
1
2
3
4
5
$ lsof -Pn -i :9080 | grep LIST
java 13835 occ 405u IPv6 125761805 0t0 TCP 127.0.0.1:9080 (LISTEN)
$ ps auxww| grep 13835
occ 13835 0.3 3.2 4709624 327464 ? Sl Jan21 282:00 /opt/opsware/openjdk1.8/bin/java -server -Xms384m -Xmx1024m -XX:MaxMetaspaceSize=256m -XX:NewRatio=3 -Dsun.lang.ClassLoader.allowArraySyntax=true -Docc.home=/opt/opsware/occ -Docc.cfg.dir=/etc/opt/opsware/occ -Dopsware.deploy.urls=/opt/opsware/occ/deploy/ -Djava.awt.headless=true -D[Standalone] -Dlogging.configuration=file:/opt/opsware/occ/wildfly/standalone/configuration/logging.properties -Djboss.server.name=occ -Djboss.server.temp.dir=/var/opt/opsware/occ/tmp -Djboss.server.data.dir=/var/opt/opsware/occ/data -Djboss.server.log.dir=/var/log/opsware/occ -Djboss.server.config.dir=/opt/opsware/occ/wildfly/standalone/configuration -Djboss.home.dir=/opt/opsware/wildfly13 -Djboss.server.base.dir=/opt/opsware/wildfly13/standalone -DsslProtocols=TLSv1.2 -jar /opt/opsware/wildfly13/jboss-modules.jar -mp /opt/opsware/wildfly13/modules:/opt/opsware/occ/wildfly/modules org.jboss.as.standalone --server-config=standalone-full.xml
OCC component
So then the next step is to inspect the OCC logs to see what it’s problem is.
When we grep for the “com.opsware.file” deployment in the server.log from March 10th, we see the following:
1
2
3
4
5
6
7
$ grep com.opsware.file /var/log/opsware/occ/server.log
2021-03-10 06:49:41,629 INFO [org.jboss.as.server.deployment.scanner] (DeploymentScanner-threads - 1) WFLYDS0004: Found com.opsware.file.ear in deployment directory. To trigger deployment create a file called com.opsware.file.ear.dodeploy
2021-03-10 06:49:42,417 INFO [org.jboss.as.server.deployment] (MSC service thread 1-5) WFLYSRV0027: Starting deployment of "com.opsware.file.ear" (runtime-name: "com.opsware.file.ear")
2021-03-10 06:49:42,551 INFO [org.jboss.as.server.deployment] (MSC service thread 1-8) WFLYSRV0207: Starting subdeployment (runtime-name: "com.opsware.file.war")
2021-03-10 06:49:46,934 ERROR [org.jboss.as.controller.management-operation] (Controller Boot Thread) WFLYCTL0013: Operation ("deploy") failed - address: ([("deployment" => "com.opsware.file.ear")]) - failure description: {"WFLYCTL0180: Services with missing/unavailable dependencies" => undefined}
. . .
What we see here is that “com.opsware.file” failed to deploy.
When we open up the server.log and look deeper we see the reason is that the OCC is failing to authenticate to the twist using the username “buildmgr”. (The OCC interacts with the twist under the username “buildmgr”.)
1
2
3
4
5
2021-03-10 06:49:44,914 ERROR [occ.auth.util] (ServerService Thread Pool -- 61) Error getting system user: OpswareError: opsware.twistConnectionFailed [ module: com.opsware.client.Twist, line: 0, hostname: twist, timestamp: 1615358984914 ]
com.opsware.fido.AuthenticationException: ID: HPSA-1114
Code: com.opsware.fido.FidoMessageSpec.AUTHENTICATION_FAILURE
Details: Authentication failed for user buildmgr. Details <class=UserImpl><method=authenticate><message='login incorrect for user: buildmgr'>
Twist log
When we look at the corresponding twist/server.log at the same timestamp, we see a “violated signature” error:
1
2
3
2021-03-10 06:49:44,841 WARN Thread-312 [com.opsware.fido.impl.user.UserImpl] [authenticateInternal] Caught Exception
java.lang.RuntimeException: <ERROR> <Bean.ejbLoad> violated signature
at com.opsware.fido.ejb.entity._AaaUser.ejbLoad(_AaaUser.java:424)
Solution
So the root cause is that the user signature for “buildmgr” is wrong. To correct this, run the following:
1
/opt/opsware/support/bin/verify_user_sigs buildmgr
In fact, I recommend running the following in order to check all SA user records:
1
/opt/opsware/support/bin/verify_user_sigs
Once all user record signatures have been fixed, then restart all of SA and try to log in again.
